Rebling - Commercial EMI Cable-Mounted Plug Connector

Rebling - Commercial EMI Cable-Mounted Plug Connector

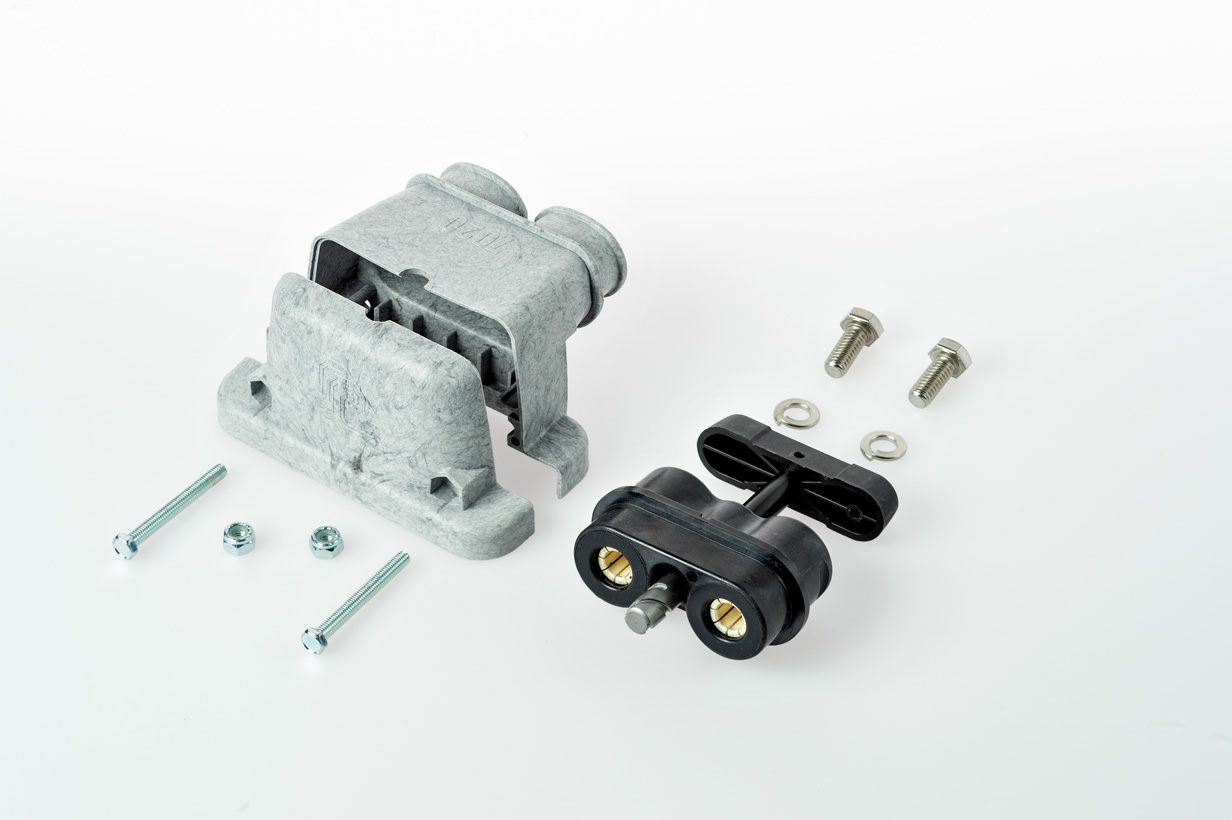

To meet the EMI and ESD requirements of certain electrified vehicle, energy storage system or control system applications, Rebling offers its two-pole, quick-disconnect EMI-shielded connectors. Our patented bulkhead-mounted EMI receptacle (7009-51) is created using a multiple-stage injection molding process which surrounds the receptacle’s silver-plated copper pins with non-conductive black plastic which is, in turn, surrounded by conductive gray plastic. The conductive gray plastic of the bulkhead-mounted receptacle is grounded to the metal bulkhead as well as to the conductive gray plastic backshell of the cable-mounted plug connector (7020-E) via a conductive gasket (643A1625). The EMI receptacle and plug are not keyable but can be used with the optional magnetic HVIL switch (643A1757).

Products are in stock at Flame Enterprises

Download Step File: https://rebling.com/product/commercial-emi-cable-mounted-plug/

Download the Datasheet:
