CII Mid-Range Relays

Series	Description / Mil-Specification	Additional Info
CII Mid-Range Relays

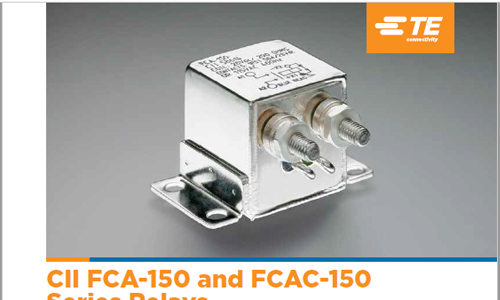

FCA-125	Single-pole, Electrically Held, 25 Amps M6106/19
FCA-150	Single-Pole, Electrically Held, 50 Amps
FCA-150NC	Single-Pole, Electrically Held, 50 Amps, Normally Closed, with Auxiliary Contacts
FCAC-150	Single Pole, Electrically Held, 50 Amps, with Auxiliary Contacts
FCA-210	Double-pole, Electrically Held, 10 Amps M83536/9 , /10
FCA-212	Double-pole, Electrically Held, 12 Amps
FCA-215	Double-pole, Electrically Held, 15 Amps
FCA-325	Three-pole, Electrically Held, 25 Amps M83536/32, /33
FCAC-325	Three-pole, Electrically Held, 25 Amps, with Auxiliary Contacts
FCA-410	Four-pole, Electrically Held, 10 Amps M83536/15, /16
FCA-415	Four-pole, Electrically Held, 15 Amps
FCB-205	Double-pole, Electrically Held, 5 Amps M83536/1, /2
FCB-405	Four-pole, Electrically Held, 5 Amps M83536/5, /6

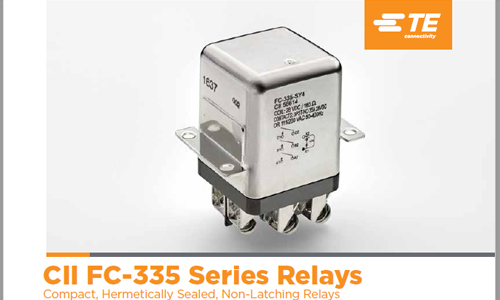

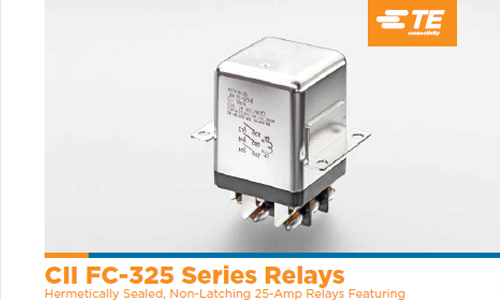

FC-325	3PST/NO (DM) 25 Amps, Hermetically Sealed MS27418
FC-335	3PST/NO (DM) 35 Amps The double make contact design of the FC-335 Series relays offer higher capacity rating over most standard M83536 Relays

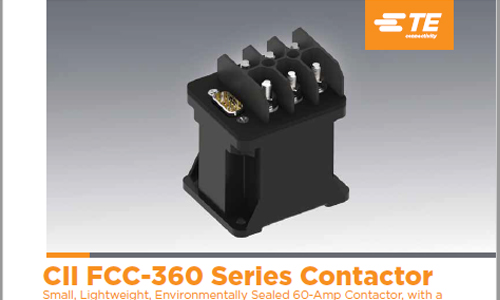

FCC-360	3PST/NO (DM) 60 Amps, W/aux, 60 Amps for both 28 VDC and 115 VAC 60Hz/400HZ switching	FCC-360-CU4
TD2 SERIES (M83726)	MTime Delay Relays M83726/28, /29, /30, /31
	Selection and Application Guide

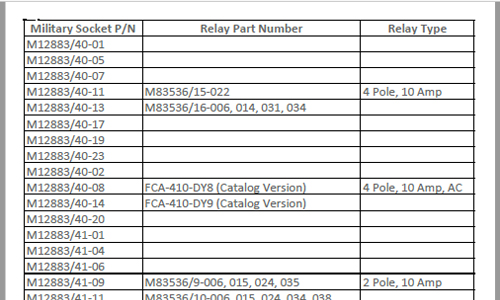

	Cross Reference, Socket to Relay

CII High Frequency Relays

Series	Description / Mil-Specification	Additional Info
CII High Frequency Relays
MW3 / MW3HP	3 GHz. Switching. Double Pole, Electrically Held, 1 Amp and Less
MW4 / MW4HP	4 GHz. Switching. Double Pole, Electrically Held, 1 Amp and Less
MW6 / MW6HP	6 GHz. Switching. Double Pole, Electrically Held, 1 Amp and Less

CII TO-5/.100 Grid Relays

Series	Description / Mil-Specification	Additional Info
CII TO-5/.100 Grid Relays

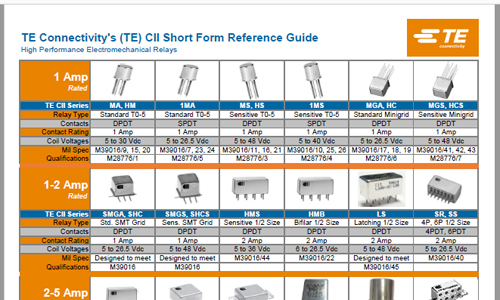

1MA , 1MAD , 1MADD	TO-5, Standard, Single Pole, Electrically Held, 1 Amp M39016/7 , M39016/23 , M39016/24
1MS , 1MSD , 1MSDD	TO-5, Sensitive, Single Pole, Electrically Held, 1 Amp M39016/10 , M39016/25 , M39016/26
1MAT	TO-5, Transistor Driven, Single Pole, Electrically Held, 1 Amp M28776/5
1MST	TO-5, Sensitive, Transistor Driven, Single Pole, Electrically Held, 1 Amp M28776/4
MA , MAD , MADD	TO-5, Standard, Double Pole, Electrically Held, 1 Amp M39016/9 , M39016/15 , M39016/20
MS , MSD , MSDD	TO-5, Sensitive, Double Pole, Electrically Held, 1 Amp M39016/11 , M39016/16 , M39016/21
MAV , MAVD , MAVDD	TO-5, High Vibration, Double Pole, Electrically Held, 1 Amp
MSV , MSVD	TO-5, High Vibration, Sensitive, Double Pole, Electrically Held, 1 Amp
HM , HS , HMD , HSD	TO-5, Commercial, Double Pole, Electrically Held, 1 Amp
MAT	TO-5, Transistor Driven, Double Pole, Electrically Held, 1 Amp M28776/1
MST	TO-5, Sensitive, Transistor Driven, Double Pole, Electrically Held, 1 Amp M28776/3
MGA , MGAD , MGADD	.100 Grid, Standard, Double Pole, Electrically Held, 1 Amp M39016/17 , M39016/18 , M39016/19
MGS , MGSD , MGSDD	.100 Grid, Sensitive, Double Pole, Electrically Held, 1 Amp M39016/41 , M39016/42 , M39016/43
HC , HCD , HCS , HCSD	.100 Grid, Commercial, Double Pole, Electrically Held, 1 Amp
MGAT	.100 Grid, MOSFET Driven, Double Pole, Electrically Held, 1 Amp M28776/6
MGST	.100 Grid, Sensitive, MOSFET Driven, Double Pole, Electrically Held, 1 Amp M28776/7
SMGA , SMGAD , SMGADD	.100 Grid, Standard, Surface Mount, Double Pole, Electrically Held, 1 Amp and Less M39016/17 , M39016/18 , M39016/19
SMGS , SMGSD , SMGSDD	.100 Grid, Sensitive, Surface Mount, Double Pole, Electrically Held, 1 Amp and Less M39016/41 , M39016/42 , M39016/43
SHC , SHCD , SHCS , SHCSD	.100 Grid, Commercial, Double Pole, Electrically Held, 1 Amp and Less
HFW , HMB , HMS	1/2 Size, Standard, Double Pole, Electrically Held, 2 Amps and Less M39016/6 , M39016/22 , M39016/44
3SCV	1/2 Size, Long-Life Industrial, Double Pole, Electrically Held, 2 Amps and Less
HFC	1/2 Size, Comm/Industrial, Double Pole, Electrically Held, 2 Amps and Less
LS	1/2 Size, Double Pole, Magnetic Latching, 2 Amps and Less M39016/45
SR	1/2 Size, Four Pole, Electrically Held, 2 Amps and Less M39016/40
SS	.1/2 Size, Six Pole, Electrically Held, 2 Amps and Less
HFW4A , HFW5A	1/2 Size, Standard, Double Pole, Electrically Held, 5 Amps and Less M39016/6
HFC4A , HFC5A	1/2 Size, Comm/Industrial, Double Pole, Electrically Held, 5 Amps and Less
C	1/2 Size, Single Pole, Electrically Held, 10 Amps and Less
3SBC , 3SCC	.150 Grid Relays, Double Pole, Electrically Held, 2 Amps and Less
3SBH	.150 Grid Relays, Four Pole, Electrically Held, 2 Amps and Less M39016/14 , M39016/53 , M39016/54
3SDH	.150 Grid Relays, Long-Life, Four Pole, Electrically Held, 2 Amps and Less
3SBM	.150 Grid Relays, Four Pole, Magnetic Latch, 2 Amps and Less M39016/31
3SAE , 3SAC	Crystal Can, Double Pole, Electrically Held, 2 Amps and Less
FW , FW5A , SF , SF5A	Crystal Can, Full Size, Double Pole, Electrically Held, 5 Amps and Less M5757/10
3SDM	Grid Space, Double Pole, Magnetic Latching, 2 Amps and Less
3SAM	Grid Space, High Shock, Double Pole, Magnetic Latching, 2 Amps and Less M39016/32
07	Double Pole, Electrically Held, 10 Amps and Less M5757/23 , MS27245 , MS27247

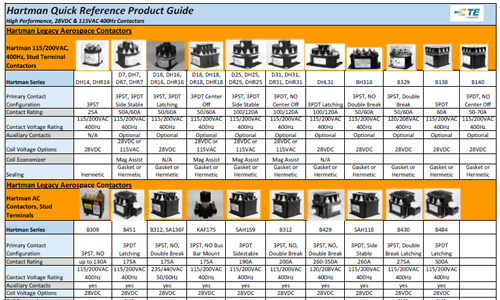

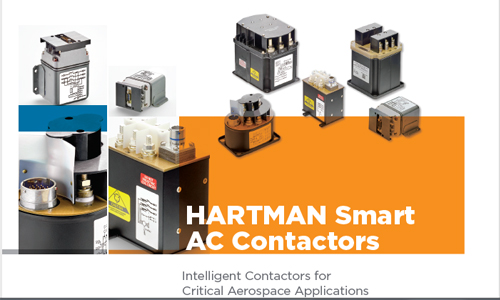

Hartman AC Contactors

Series	Description / Mil-Specification	Additional Info
Hartman AC Contactors
DH14 , DHR14	25 Amps, 3PDT, Latching DH14B, DH14B-3, DH14CE, DHR14B, DHR14BA
DHR18	30 Amps, 3PDT, Latching DHR18-1
D7, DH7, DHR7, DR7	50 Amps, 3PDT and 3PST NO D7BS, D7M, D7GR-2, D7GRZ, DH7BB, DH7N, DH7ZG-1, DHR7ZG DR7VC, D7GR, D7GR-3, D7MA, D7MM, DH7GR, DH7ZAB, DHR7B, DHR7BE, DHR7K, DHR7M
D18, DH18, DHR18	50 Amps, 3PDT, Center Off D18, D180A, D18AA, D18F, D18ZZC, DH18, DH18Y, DR18E-5
BH316	50 Amps, 3PST NO, Double Break BH316, BH316A, BH316D, BH316C
B138	60 Amps, TPST NO and TPDT NC B138S, B138XEH, B138BH, B138XAH
B140	60 Amps, 3PDT NO, Center Off B140AP-1, B140BH, B140V
DH7	60 Amps, 3PDT DH7BC
D25, DH25, DHR25	100 Amps, 3PDT D25BD, DH25B, DH25BA, DHR25BG
D25, DH25	120 Amps, 3PST NO (D25CF, DH25CU)
D31	100 Amps, 3PDT, Center off D31C
D31, DH31, DHL31	120 Amps, 3PDT, Center off D31DB, D31TH, DH31A, DH31DA, DH31DAA, DHL31B
D25	125 Amps, 3PDT, Side stable D25BAH
B309	130 Amps, 3PST NO, Single break main contacts B309A
B451	175 Amps, 3PDT, Magnetic latching B451
B312	175 Amps, 3PST NO, Double break B312DB
KA175	175 Amps, 3PST NO, Side stable KA175B3C
SA136F	175 Amps, 3PST NO, Side stable, 240/416 VAC SA136F
B312	200 Amps, 3PST NO B312CV
B393	260 Amps, 3PDT, Center off, double break B393T
B429	260-350 Amps, 3PST NO, Double break B429W, B429-1, B429CA
B430	275 Amps, 3PST, Double break, magnetic latching B430-1, B430Z
B484	500 Amps, 3PDT, Magnetic latching B484, B484C

Hartman DC Contactors

Series	Description / Mil-Specification	Additional Info
Hartman DC Contactors
K Series	200-1000 Lightweight High Performance DC Contactors
K Series	Selection Guide
DH14 , DH21	25 Amps, SPDT, 1 NO, 1 NC, Double Break DH14A, DH14AL, DH14AT, DH21N
D7, DH7, DH18	50 Amps, 2 SPST, 1 NO, 1 NC D7AC, D7LHB, DH18DA, DH7ATK, DH7MN, DH7TB
A1077	100 Amps, SPST NO, Double Break or SPDT Double Break A1077DD, A1077S
D31	100 Amps, SPDT, Center Off, Double Break D31BAA
D32A	100 Amps, 2PST, Center Off, Double Break D32A
DH25	100 Amps, SPDT, 1 NO, 1 NC, Double Break DH25EA
DHR31BA	100 Amps, SPDT, Center Off DHR31BA
A1077	200 Amps, SPST NO, Double Break or SPDT Double Break A1077D, A1077F, A1077G, A1077V, A1077W
A876	200 Amps, SPST NC, Double Break A876K
A1077	230 Amps, SPST NO, Double Break or SPDT Double Break A1077B
A770, AR770	300 Amps, SPST NO, Double Break A770AM, A770N, A770RF, A770RG, A770RN, A770RSS, A770RV, A770W, A770WA-2, A770WA-3, A770WF, AR770W
A848	300 Amps, SPST NO, DPST NC, Double break A848KH, A848KH-2
AH965	300 Amps, SPDT NO, SPST NC AH965H, AH965M
A400	400 Amps, SPST NO, Double break A400A, A400AA, A400B, A400D, A400DB1, A400DC, A400G, A400G2, A400L, A400S
A703, AH703	400 Amps, SPST NO, Double break A703, A703CD, A703CSM, A703D, A703DBH, A703E, A703FA, A703FB, A703FSS, A703G-1, A703GC, A703B, A703GS, A703R, A703T, A703ZS, AH703F
A981	400 Amps, SPDT, Double break or SPST NO, SPST NC A981S, A981P
A712	600 Amps, SPST NO, Double break A712AB, A712AF, A712J, A712W
A882	600 Amps, 2PDT, Double break A882DL
A931	600 Amps, SPST NC, Double break A931F
A981	600 Amps, SPDT, Double break or 1PST NO, 1PST NC A981E, A981K
	DC Contactors Selection Guide

Hartman Sensors & Devices

Series	Description / Mil-Specification	Additional Info
Hartman Sensors & Devices
E328-2	AC Low Voltage Warning Relay E328-2
A772	Battery Contactor A772XTB
E387	25 Amp, Current Sensor, Single Phase 400 Hz E387C-1
A700	100 Amp, Cutout, Reverse Current A700BU
A700	200 Amps, Cutout, Reverse Current A700AQ4
A700	300 Amps, Cutout, Reverse Current A700AAP, A700ZC-7, A700ZG
A701	400 Amps, Cutout, Reverse Current A701D, A701C
A702	600 Amps, Cutout, Reverse Current A702AAP
B188	Monitor, External Power, 3 Phase, 400 Hz B188MA-1
A711	600 Amps, Relay, Automatic Dropout A711JF, A711JM, A711Z, A711R
A957	200 Amp, Relay, Automatic Cutout A957CSD, A957G
A957	300 Amp, Relay, Automatic Cutout A957E
A957	350 Amp, Relay, Automatic Cutout A957CA
Q50	2 Amps, Relay, Current Indicator Q50Y
Q50	3.5 Amps, Relay, Current Indicator Q50F
Q50	6.25 Amps, Relay, Current Indicator Q50BB, Q50E, Q50BD
Q50	10 Amps, Relay, Current Indicator Q50A
Q50	15 Amps, Relay, Current Indicator Q50CC
QR50	16 Amps, Relay, Current Indicator Q50S, Q50Z
Q50	20 Amps, Relay, Current Indicator Q50J, Q50AC, Q50AG, Q50AB-1, Q50AB-2
QR50	5 Amps, Relay, Current Indicator Q50J, Q50AC, Q50AG, Q50AB-1, Q50AB-2
QR50	15 Amps, Relay, AC Current Indicator QR50H
E316C	Undervoltage AC 3 Phase E316C
E311PB	Undervoltage with Time Delay E311PB
E329	Voltage Sensing Relay E329E
RA3100	Remote Power Controller, Rated up to 60 Amps RA3100H
RA3100	Remote Power Controller, Rated up to 70 Amps RA3100F
RA3100	Remote Power Controller, Rated up to 100 Amps RA3100D, RA3100M
RA3100	Remote Power Controller, Rated up to 110 Amps RA3100J-1, RA3100L
E308TA	Undervoltage Sensor, Rated up to 10 Amps E308TA
	Sensors & Protective Devices Selector Guide

Kilovac High Voltage Contactors

Kilovac Time Delay Relays

Series	Description	Additional Info
Kilovac Time Delay Relays
1600/1700 Series	Delay on Operate, Fixed & Adjustable
2400 Series	ubminiature, Delay on Operate, Fixed
5600/5700 Series	Delay on Release, Fixed & Adjustable
1800/1900 Series	Delay on Operate, Fixed & Adjustable, Solid State Output
6001 Series	Delay on Operate, Fixed, Solid State Output (M83726/13)
4600/4700 Series	Interval Timers, Fixed & Adjustable, Relay Output
4800 Series	Interval Timers, Delay on Operate, Solid State Output

Click on any link to open a PDF information sheet, PDF drawing or product image. These documents are for reference only. To request the latest document revision or to request other documentation, please contact Sales

TE Connectivity (click each for information)

Mid-Range Relays

TE CII brand Mid-range relays offer critical size and weight savings in aircraft applications by providing efficient power switching in a compact package. Relays vary in size from the compact 5 amp package all the way up to a 50 amp version in a 1 inch cube enclosure.

High Frequency Relays

CII relays provide microwave frequency switching in a hermetically sealed subminiature package. Both standard and high performance models are offered in 3 GHz., 4 GHz. and 6GHz types.

T0-5 and .100 Grid Relays

Space-saving reliability. These non-latching relays are hermetically sealed and are available with standard or sensitive coils. We also offer the added protection of suppression diodes, protection diodes, and transistor drivers. mil-spec, commercial-of-the-Shelf (COTS) and catalog versions are available.

AC Contactors

HARTMAN AC contactors are lightweight and environmentally (gasket) sealed. Hermetically sealed enclosures are available for the most severe environmental conditions or altitudes above 50,000 feet. Multiple main contact configurations and auxiliary contact configurations are available. AC contactors are designed to meet the applicable requirements of MIL-PRF-6106 and/or specific customer specification.

DC Contactors

For the most severe environmental conditions HARTMAN DC contactors are lightweight and environmentally (gasket) sealed, with hermetically-sealed enclosures available for most severe environmental conditions or altitudes above 50,000 feet. Multiple main contact configurations and auxiliary contact configurations are available. AC and DC contactors are designed to meet the applicable requirements of MIL-PRF-6106 and/or specific customer specifications.

K Series

The Hartman brand K-Series are a month the smallest and lightest 200-1000 ampere DC contactors available in the aerospace industry. These highly flexible buss bar mounted or chassis mounted units are designed for either continuous or start duty applications in the DC power distribution systems of military and commercial aircraft and ground vehicles.

DC Contactors

KILOVAC DC Contactors from TE Connectivity deliver the switching performance demanded by aerospace and defense applications. These lightweight contactors offer continuous current ratings up to 500 amps at 900 volts dc in very compact packages.

Series	Description	Additional Info	Data Sheet	Drawing
High Voltage DC Contactors
High Voltage DC Contactors Quick Reference Guide
MAP101	Military Contactor (SPST-NO) 100 Amps, 12-900 Vdc, Dual Contact Material
MAP100	Military Contactor (SPST-NO) 100 Amps, 12-900 Vdc
MAP200	Military Contactor (SPST-NO) 500 Amps, 12-900 Vdc
MAP201	Military Contactor (SPST-NO) 350 Amps, 12-900 Vdc Dual Contact Material
CAP202	Aerospace Commercial Contactor (DPST-NO) 300 Amps, 12-600 Vdc
CAP200	Aerospace Commercial Contactor (SPST-NO) 500 Amps, 12-900 Vdc
CAP120R	Aerospace Commercial “Latching” Contactor (SPST-NO, Form P) 150Amps
CAP100	Aerospace Commercial Contactor 100 Amps 900 Vdc
EV200A, EV200H, EV200G	Comm. & Elec Vehicle Contactor (SPST-NO) 500+ Amps, 12-900 Vdc
EV200B, EV200D	Comm. & Elec Vehicle Contactor (SPST-NC) 500+ Amps, 12-900 Vdc
EV200P, EV200F	Comm. & Elec Vehicle Contactor (SPST Latch) 500+ Amps, 12-900 Vdc
EV100	Comm. & Elec Vehicle Contactor 100 Amps Continuous, 600 Vdc

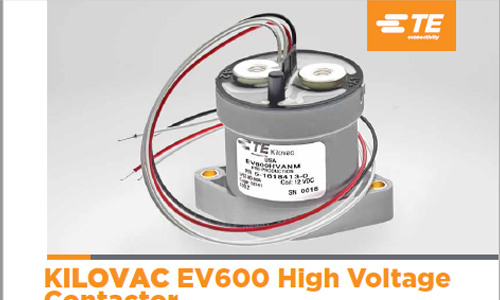

EV600	Comm & Elec Vehicle Contactor (SPST-NO) 600 Amps, 28-1000 Vdc / Bi-Directional Power Switching
K1K06X	Aerospace Commercial Contactor (SPST-NO-DM) W/Aux 1000 Amps
KHR500	Aerospace Commercial Contactor (SPST-NO-DM) W/Aux 600 Amps
LEV100	Industrial/Commercial Contactor 900 Vdc Contactor (SPST-NO-DM) 100A Continuous
LEV200	Industrial/Commercial Contactor 500+ Amps, 12-900Vdc
AC Contactors
FM200	Contactor, 200 Amps, 480 VAC (50/60 Hz), or 48 Vdc, 1-, 2-, or 3-poles
AC30	Contactor, 60 Amps, 600 VAC (50/60 Hz), 3 Form A (3PST-NO)
Traditional 270 Vdc Aerospace Contactors
AP90X	90 Amps SPUD Contactor
AP150X	Form X, Electrically Held Contactor
AP265X, AP265P	(Form X, Electrically Held) & (Form P, Latching) 265 Amp Contactor
AP350X	500 Amps “BUBBA” Contactor
Traditional 28 Vdc to 1800 Vdc Contactors
EV250	400 Amps CZONKA-II EVX Make & Break Load Switching
EV500	600 Amps “BUBBA” Contactor, Make & Break Load Switching
PD350X	500 Amps “BUBBA” Contactor, Make & Break Load Switching
High Voltage Relays
High Voltage Quick Reference Guide
AP5A, AP5B, AP5C, AP5P, AP5R	270 Vdc Aerospace Relays, 5 Amps
AP10A, AP10B, AP10P, AP11A	270 Vdc Aerospace Relays, 10 Amps
AP44P	270 Vdc Aerospace Relays, 15 Amps
PD5A, PD5B, PD5C	28 Vdc to 1800 Vdc Relays, Make & Break Load Switching, 5 Amps
PD10A, PD10B, PD10P	28 Vdc to 1800 Vdc Relays, Make & Break Load Switching, 10 Amps
K45C	Make & Break Load Switching — 1.5 - 2 kV Relays
HC-1, HC-3, HC-5	3.5 kV Relays
K41A, K41B, K41C, K41P, K41R	Make & Break Load Switching — 5.0 kV Relays
K40P, K40P364	Make & Break Load Switching — 5.0 kV Relays
KM-17	Make Only Load Switching — 7.5 kV Relays
K47A, K47B	Make & Break Load Switching — 8 kV Relays
HC-2, HC-4, HC-6	8 kV Relays
H-18	Make & Break Load Switching — 8 kV Relays
K44P	Make & Break Load Switching — 8 kV Relays
K81A, K81B	Make & Break Load Switching — 10 kV Relays
K81C	Make & Break Load Switching — 10 kV Relays
K43A, K43B, K43C, K43P, K43R	Make & Break Load Switching — 10 kV Relays
H-14, H-16	Make & Break Load Switching — 12 kV Relays
H-8	Make & Break Load Switching — 15 kV Relays
KC-14, KC-18	Make & Break Load Switching — 15 kV Relays
KC-2, KC-8, KC-11, KC-12	Make & Break Load Switching — 15 kV Relays
KC-15, KC-16	Make Only Load Switching — 15 kV Relays
H-26	Make & Break Load Switching — 15 kV Relays
H-19, H-17	Make & Break Load Switching — 20/25 kV Relays
K62A, K62B, K62C	Make & Break Load Switching — 25 kV Relays
KC-20, KC-30	No Load Switching — 25 kV Relays
KC-22, KC-32, KC-28, KC-38	25 kV Relays
H-23, H-24	Make & Break Load Switching — 30 kV Relay
KP61	35 kV Relays
K60C	Make Only Load Switching — 35 kV Relays
K61A, K61B, K61C	Make Only Load Switching — 35 kV Relays
K64C, H-25	50 kV Relays
K70A, K70B, K70C	Make Only Load Switching — 70 kV Relays
Mounting Methods
Special Connectors
Application Notes for EV/LEC Contactors
Application Notes for MAP/CAP Contactors
Application Notes on Coil Power Economizing using PWM Circuits

Electrical Protection & Control

Switching & Indication

Thermal Management

Interconnection

Specialty Devices

Sign up for Product News

Sign up for Product News

TE Connectivity Catalogs (click to expand)

TE Connectivity (click each for information)

Additional Catalogs

TE HP Relay Catalog

TE eAircraft Brochure

TE CII Short Form Catalog

Hartman Smart AC Contactors

TE HP Relay Overview

FCC-360

Hartman Legacy AC Contactors

Mid-Range Relay to Socket

TE Relay Selection Guide

FC-335

FC325 25 Amp

FCA-FCAC 50Amp Relays Flyer

Kilovac Overview

TE QPL Listing

EV600

DRI Relays Overview

About the Company

Company LInks

Locations-USA

Get in Touch

Download Linecard

AS9120 Certificate

Electrical Protection & Control

Switching & Indication

Thermal Management

Interconnection

Specialty Devices

Sign up for Product News

Sign up for Product News

TE Connectivity Catalogs (click to expand)

TE Connectivity (click each for information)

Additional Catalogs

TE HP Relay Catalog

TE eAircraft Brochure

TE CII Short Form Catalog

Hartman Smart AC Contactors

TE HP Relay Overview

FCC-360

Hartman Legacy AC Contactors

Mid-Range Relay to Socket

TE Relay Selection Guide

FC-335

FC325 25 Amp

FCA-FCAC 50Amp Relays Flyer

Kilovac Overview

TE QPL Listing

EV600

DRI Relays Overview

About the Company

Company LInks

Locations-USA

Get in Touch
